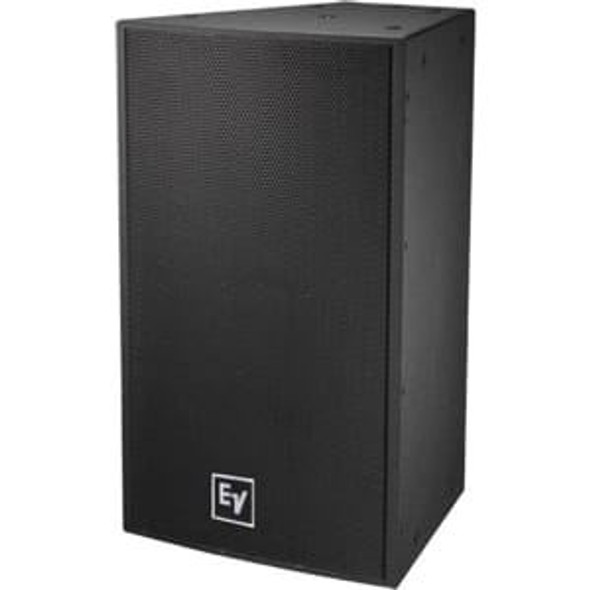

Electro-Voice Prem 15" 2-W FR 90x40 Speaker B

EVF-1152D/94 features a 90 x 40 rotatable waveguide, design for medium field medium throw raw spread coverage pattern.



Features:

Compact and lightweight
Low distortion, high efficiency
Ideal for fixed installations
DVX3151A woofer with fully symmetric drive
3-inch DH7N titanium/neodymium HF compression driver
Rotatable Constant-directivity waveguide
Six available patterns with coverage from 40(0) to 90(0)
100 dB sensitivity, 134 dB maximum SPL
Power handling: 600 W continuous, 2400 W peak
4th-order crossover with HF protection
Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
M10 threaded suspension points (22)
Transformer kit available for distributed systems



Specifications:

Environmental Specs: Standard versions: IEC 60529 IP44, PI and FG versions: IEC 60529 IP55
Input Connections: Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Frequency Response (-3 dB): 70 - 18000 Hz
Frequency Response (-10 dB): 40 - 21000 Hz
Recommended High-Pass Frequency: 45 Hz
Sensitivity 1 W/1 m: 100 dB
Max. SPL/1m (calc): 134 dB
Coverage (Nominal -6 dB) H: 90
Coverage (Nominal -6 dB) V: 40
System Power Handling (Continuous/Program/Peak): 600/1200/2400 Watts
LF Transducer: DVX3151A 15-inch (381 mm) woofer
LF Nominal Impedance: 8 Ω
HF Transducer: DH7N 3-inch (76mm) diaphragm compression driver
